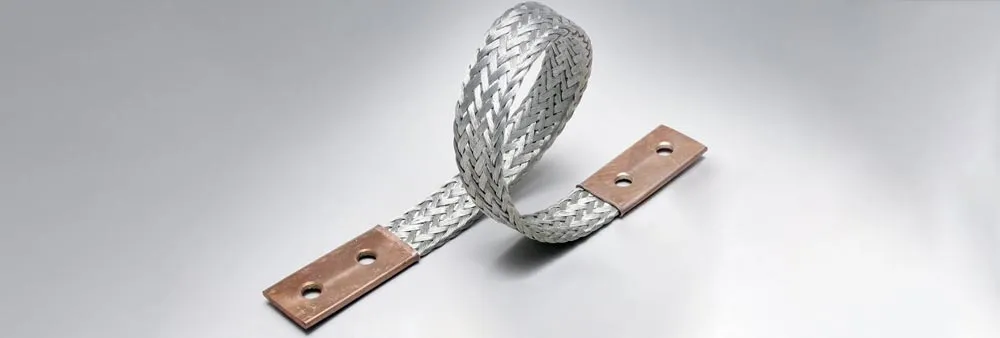

Flexible Braided Busbar
high power copper braid connectors are used by busbar to transformers, busbars to busducts, busbars to gen sets, busbars to UPS systems, busbars to generators, busbars to isolators, busbars to switches, busbars to circuit breakers, busbars to fuses, busbars to ACBs, busbars to MCCBs and any other electrical connections within a power transmission system.

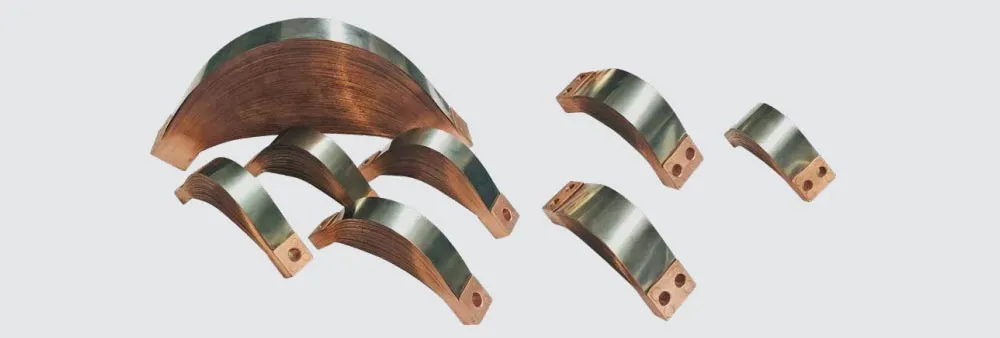

PRESS WELDED LAMINATED COPPER SHUNTS
laminated copper electrical shunts are made of several thin layers of laminated copper press-welded to create bonded ends.



  RIVETED LAMINATED COPPER SHUNTS
Laminated shunts are designed to customer specified dimensions and tolerances.
To order you need to determine:
1.Shunt type (shape)
2.Lamination leaf thickness (each; i.e. .005, .010)
3.Total shunt thickness (laminations only)
4.Shunt width
5.Shunt length (outside length)
6.Hole diameter - ID
7.Hole pattern and number of holes
8.Hole location from shunt end

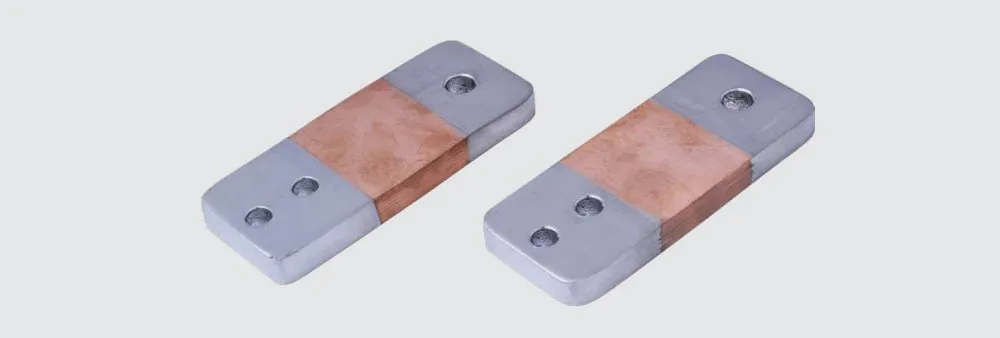

FLEXIBLE FORGE WELDED PRODUCTS

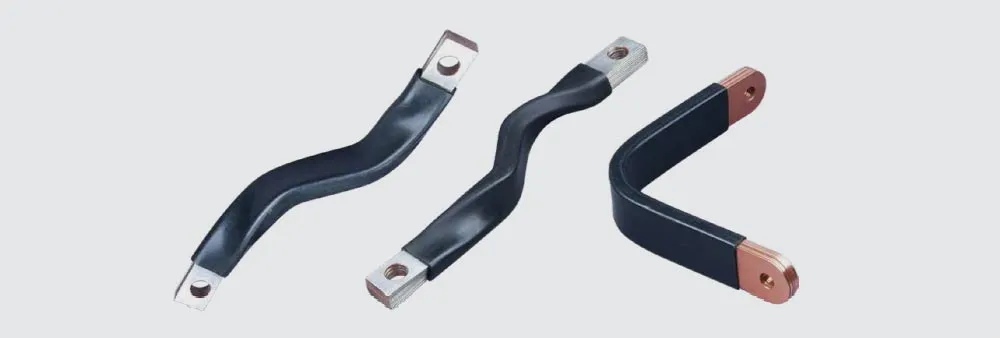

Insulated Flexible Bar
insulated flexible copper bars are mainly utilised for providing the power connections between busbars and the disconnection devices within an electrical panel. The insulated layered copper allows the flexible copper bar to be easily formed to provide a customised solution.




Copper bar complex projects
Copper busbar fabrication according to customer design

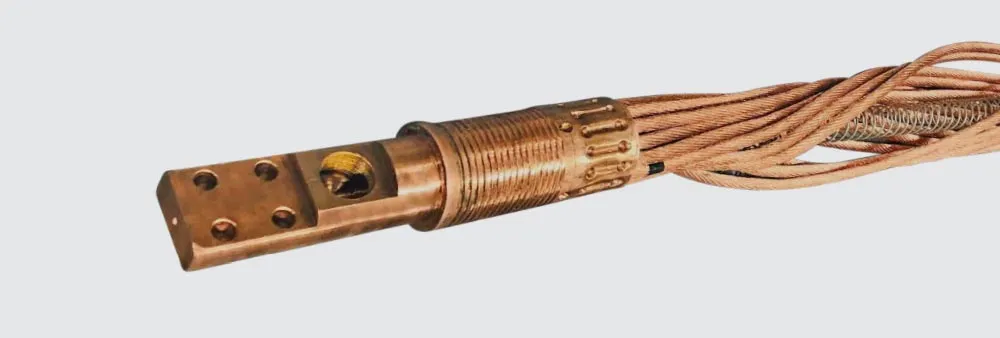

BRAID AIR AND WATER COOLED

They are manufactured from 0,10 – 0,80 mm cooper wires. We manufacturecontact parts of bars with desired current capacity and measurements. As perorder we produce them with water or aircooling.

The products are sent to customer after performing all the tests of the products.



Some product types we produce:

braided copper busbar

braided flexible busbar

flexible braided connector

flexible copper braiding

insulated flexible busbar

water cooled cables

copper laminated flexible connectors

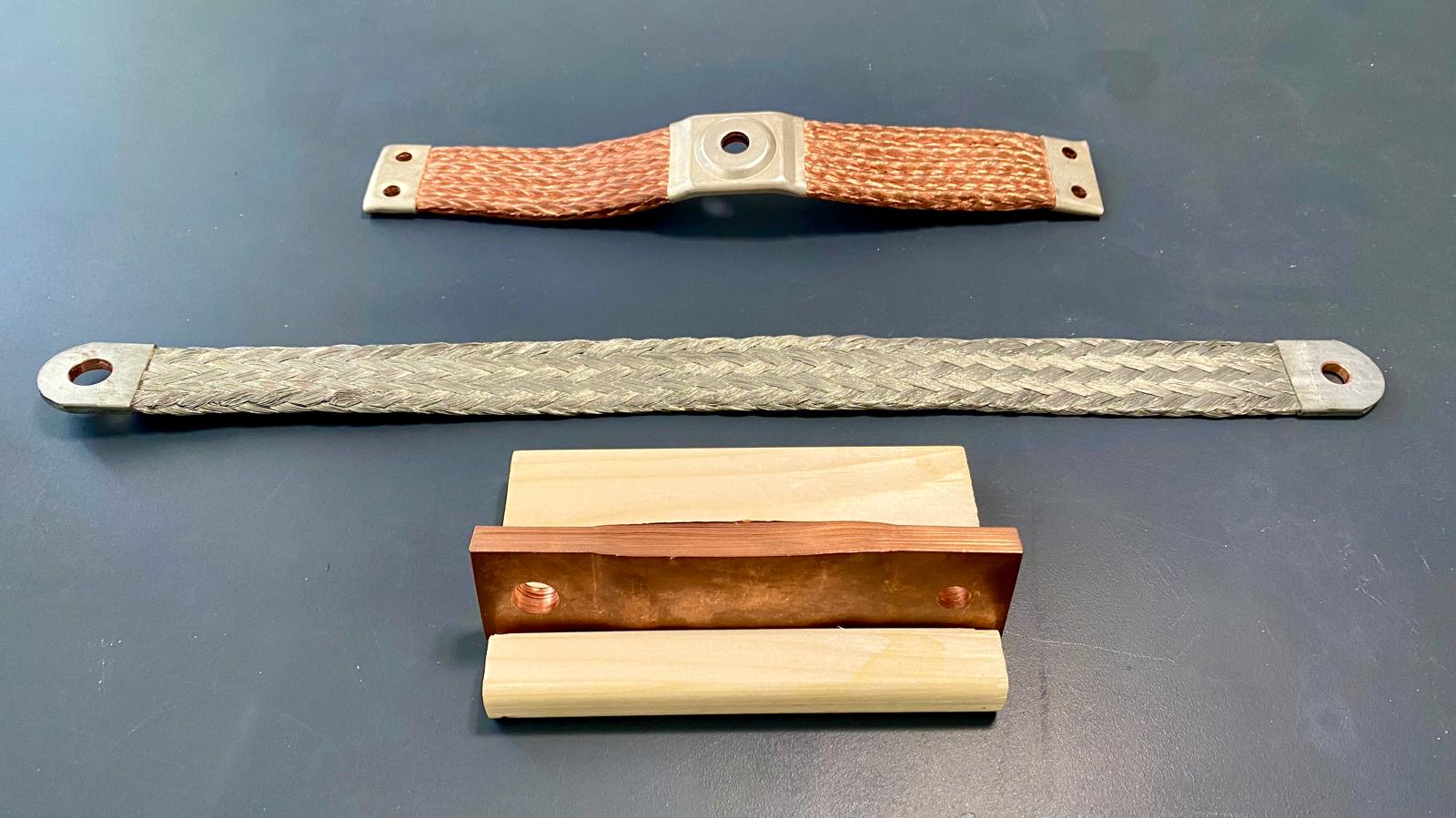

Grounding Braids

At Haydn Company, we take pride in delivering innovative solutions tailored to your specifications. Explore the possibilities of our products and services by visiting www.flexcopper.com. Your journey to reliable and flexible copper solutions begins here.

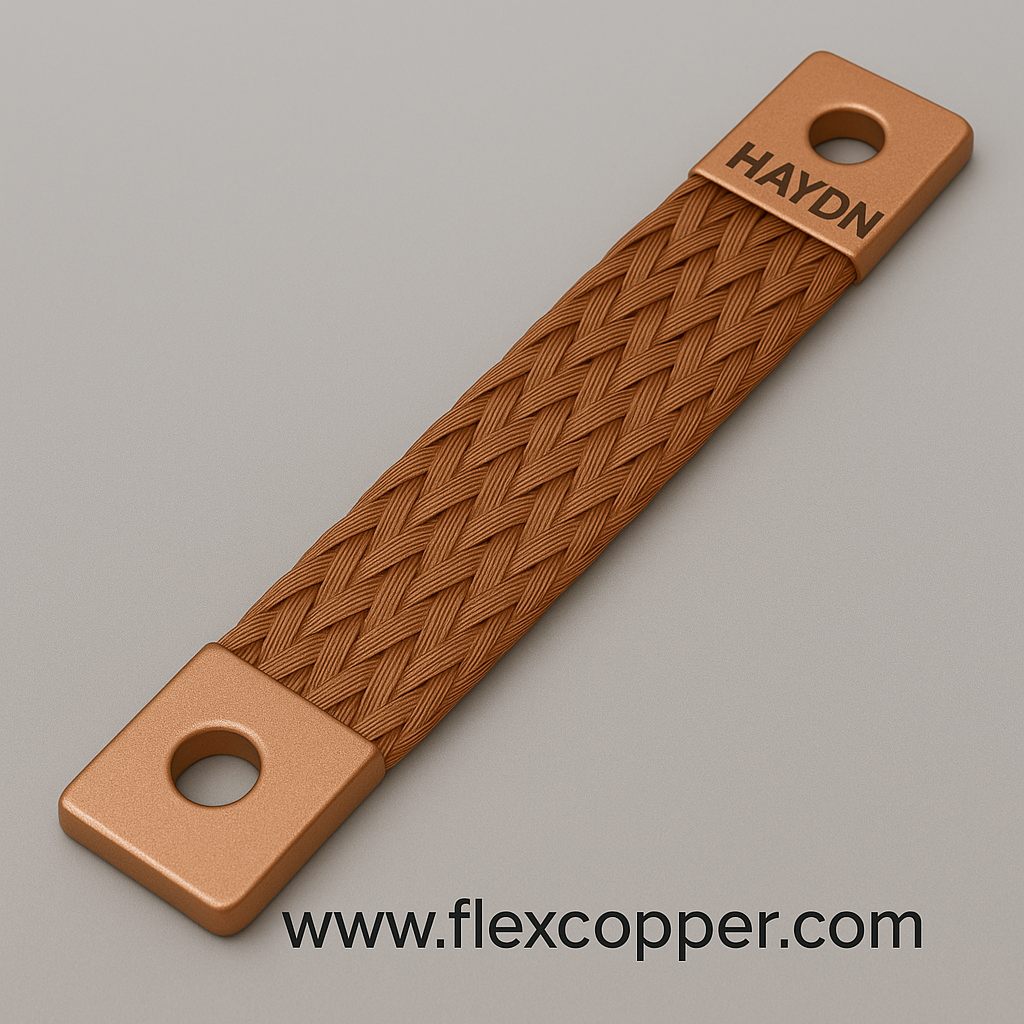

Flexible copper bars, also known as flexible copper connectors or braided copper strips, are electrical conductors made from multiple strands of copper wire woven or braided together. These flexible bars are designed to provide a highly conductive and flexible solution for connecting various components in electrical systems. They offer advantages in terms of flexibility, heat dissipation, and ease of installation compared to rigid copper bars.

Key features and applications of flexible copper bars include:

Features:

1. Flexibility: The multiple strands and braided structure of flexible copper bars allow them to bend and conform to different shapes, making them suitable for applications with tight spaces or where flexibility is required.

2. Conductivity: Copper is an excellent conductor of electricity, and the multiple strands in flexible bars enhance the overall conductivity of the component.

3. Heat Dissipation: The braided structure of flexible copper bars allows for improved heat dissipation, making them suitable for applications where heat generated during electrical flow needs to be managed.

4. Vibration Resistance: The flexibility and design of these bars make them resistant to vibration, which is important in applications where mechanical stress and movement are factors.

5. Ease of Installation: Flexible copper bars are often easier to install than rigid bars, especially in applications with complex geometries or where space is limited.

Applications:

1. Power Distribution: Flexible copper bars are used in power distribution systems to connect various components like switchgear, transformers, and busbars.

2. Electrical Panels: They are commonly used in electrical panels and distribution boards to provide flexible and reliable connections.

3. Grounding Systems: Flexible copper bars are employed in grounding systems to establish secure connections for grounding applications.

4. Battery Connections: In applications involving batteries, such as in uninterruptible power supply (UPS) systems, flexible copper bars provide reliable connections.

5. Electrical Equipment: Flexible copper bars are used in various electrical equipment and devices where a flexible and reliable conductor is required.

These flexible copper bars play a crucial role in ensuring efficient electrical conductivity, managing heat, and accommodating movement or vibration in electrical systems.



Welcome to our comprehensive range of copper electrical solutions designed to meet the diverse needs of various applications. Our offerings include a wide array of products such as Flexible Copper Bars, Copper Busbars, and Braided Copper Bars, providing reliable and efficient electrical conductivity.

For flexible and adaptable connections, explore our Flexible Copper Connectors and Flexible Copper Strips. These products offer versatile solutions for applications where flexibility is a key requirement.

Our Copper Busbar Systems and Copper Grounding Bars are engineered to provide stable and efficient grounding solutions, ensuring the integrity of electrical systems. Copper Conductor Bars, High Current Copper Bars, and Custom Copper Bars are designed to handle high electrical currents while maintaining durability and performance.

Tinned Copper Bars, Copper Shunt Bars, and Laminated Copper Bars offer specialized solutions for various industrial applications, providing corrosion resistance and enhanced conductivity.

To meet insulation requirements, consider our Insulated Copper Bars. These bars are designed to prevent electrical contact and provide added safety in diverse settings. Copper Flat Bars and Copper Ribbon Bars are available to suit specific design and space requirements.

For earthing solutions, our Copper Earthing Bars and Copper Flexible Jumpers offer reliable connections to the ground, ensuring safety and proper grounding.

Explore our Copper Busbar Assemblies, which are pre-assembled configurations for easy installation. Additionally, our Flexible Copper Busbar Solutions provide tailor-made options to meet the unique needs of your electrical systems.

Whether you are looking for standard products or customized solutions, our range of copper electrical products is designed to deliver quality, durability, and optimal performance. Discover the versatility and reliability of our copper bars and busbar solutions for your electrical applications.



Why should I buy Haydn Companies products?

There are several compelling reasons to consider purchasing Haydn Company´s products in the mentioned categories:

1. Quality and Durability:

   • Haydn Company is known for producing high-quality products. The flexible copper bars, braided copper bars, and other items are likely manufactured using top-grade materials, ensuring durability and longevity.

2. Customization Options:

   • If you require specific configurations or dimensions for your application, Haydn Company may offer customization options. This flexibility can be crucial in ensuring that the products meet your exact requirements.

3. Expertise and Experience:

   • Haydn Company likely has a wealth of experience in the industry. Their expertise can translate into well-engineered products that conform to industry standards and best practices.

4. Variety of Products:

   • The range of products listed, including flexible copper bars, braided copper bars, connectors, and more, indicates that Haydn Company likely provides a comprehensive selection. This variety allows you to source multiple components from a single reliable supplier.

5. Application-Specific Solutions:

   • Haydn´s products, such as braided copper connectors and air/water-cooled cables, may be designed to cater to specific applications. Understanding your unique needs, the company may offer solutions tailored to your industry or project.

6. Compliance with Standards:

   • Reputable companies adhere to international standards and regulations. Haydn Company´s products are likely designed and manufactured in compliance with relevant industry standards, ensuring safety and reliability.

7. Riveted and Press Welded Shunts:

   • The inclusion of riveted laminated copper shunts and press-welded laminated copper shunts suggests that Haydn offers different types of shunts to accommodate various electrical requirements. This versatility can be advantageous for different applications.

8. Responsive Customer Support:

   • A company´s commitment to customer support is crucial. Haydn Company may provide responsive customer service, assisting with inquiries, technical support, and ensuring a positive customer experience.

9. Innovation and Technology:

   • Haydn Company may invest in innovative technologies and manufacturing processes. This commitment to staying current with technological advancements can result in more efficient and effective products.

Before making a purchase, it´s advisable to reach out to Haydn Company directly to discuss your specific needs, inquire about product specifications, and ensure that their products align with your project requirements.

Enhance Your Electrical System with Premium Copper Products from Haydn Company:

At Haydn Company we take pride in offering a comprehensive range of top-quality copper products designed to meet the diverse needs of your electrical applications. Explore our selection below:

1. Earthing Straps:

   • Ensure a robust connection to the earth with our reliable and durable earthing straps.

2. Earthing Bonds:

   • Establish secure bonds for effective earthing solutions in various electrical setups.

3. Transformer Braid:

   • Our transformer braids are engineered for optimal conductivity and performance.

4. Busbar Braid:

   • Facilitate efficient electrical distribution with our high-quality busbar braids.

5. Flat Copper Braid:

   • Achieve a flat and reliable connection with our precision-engineered flat copper braids.

6. Flat Flexible Copper Braid:

   • For applications requiring flexibility without compromising conductivity, our flat flexible copper braids are the ideal choice.

7. Round Copper Braid:

   • Ensure a secure and rounded connection with our round copper braids.

8. Rope Copper Braid:

   • Explore the flexibility and strength of our rope copper braids for versatile applications.

9. Shielding Braids:

   • Enhance electromagnetic interference protection with our shielding braids.

10. Knitted Copper Mesh:

    • Our knitted copper mesh provides a reliable solution for diverse shielding and grounding requirements.

11. Braided Copper Busbar:

    • Optimize power distribution with our durable and efficient braided copper busbars.

12. Braided Flexible Busbar:

    • Experience flexibility without compromising conductivity in your electrical connections with our braided flexible busbars.

13. Flexible Braided Connector:

    • Our flexible braided connectors offer versatile solutions for various electrical connections.

14. Insulated Flexible Busbar:

    • Ensure safety and performance with our insulated flexible busbars, ideal for diverse electrical applications.

15. Water Cooled Cables:

    • Explore our water-cooled cables designed for efficient heat dissipation in demanding environments.

16. Copper Laminated Flexible Connectors:

    • Achieve reliable and efficient connections with our copper laminated flexible connectors.

17. Grounding Braids:

    • Our grounding braids provide secure grounding solutions for a range of electrical systems.

Visit our website at www.flexcopper.com for more detailed information on each product and how Haydn Company can elevate the performance of your electrical infrastructure.
