MV Switchgear Components
|
![]() MV Switchgear Components
Please send your request to sales@transformer-switchgear.com
Circuit Breaker And LBS Charging Motor And Reductor
![]() ![]() ![]() - Wcu Contact Parts /E-CU Contacts, Tulip Contacts

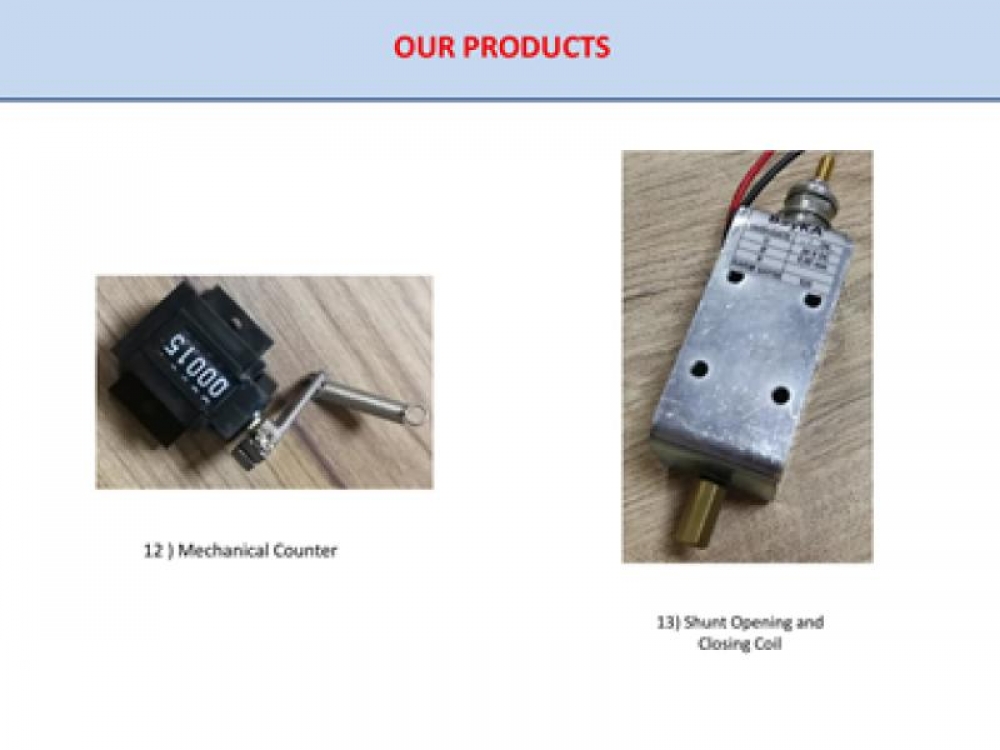

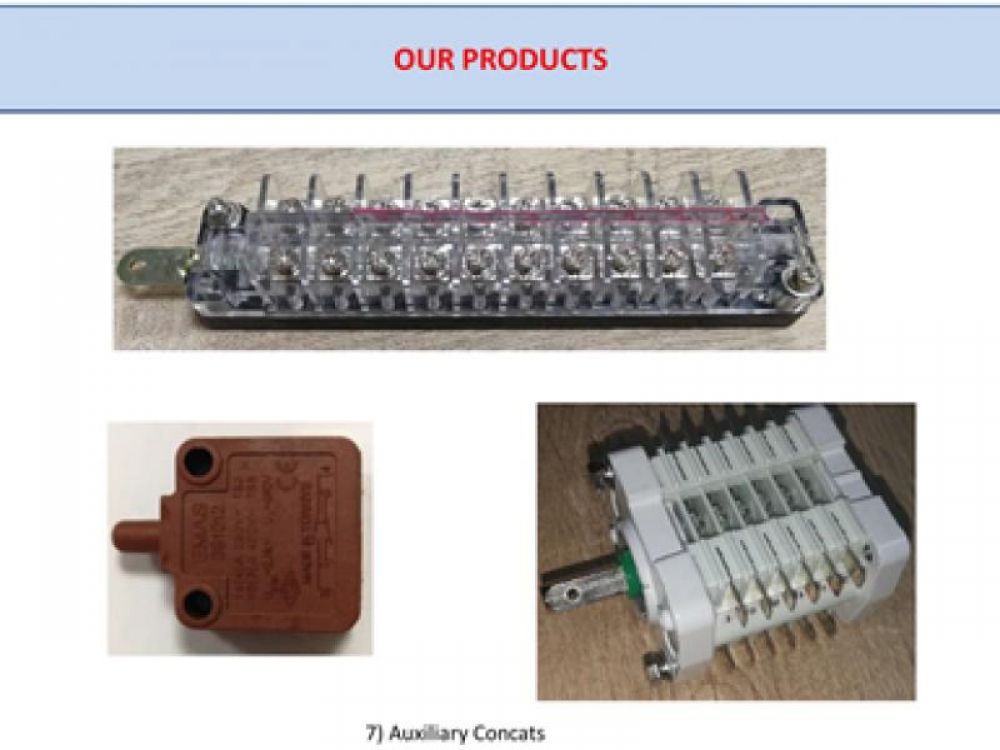

![]() ![]() ![]() - Auxilary Contacs /Motor Stop Contact ![]() ![]() Mechanical Counter

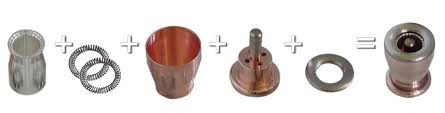

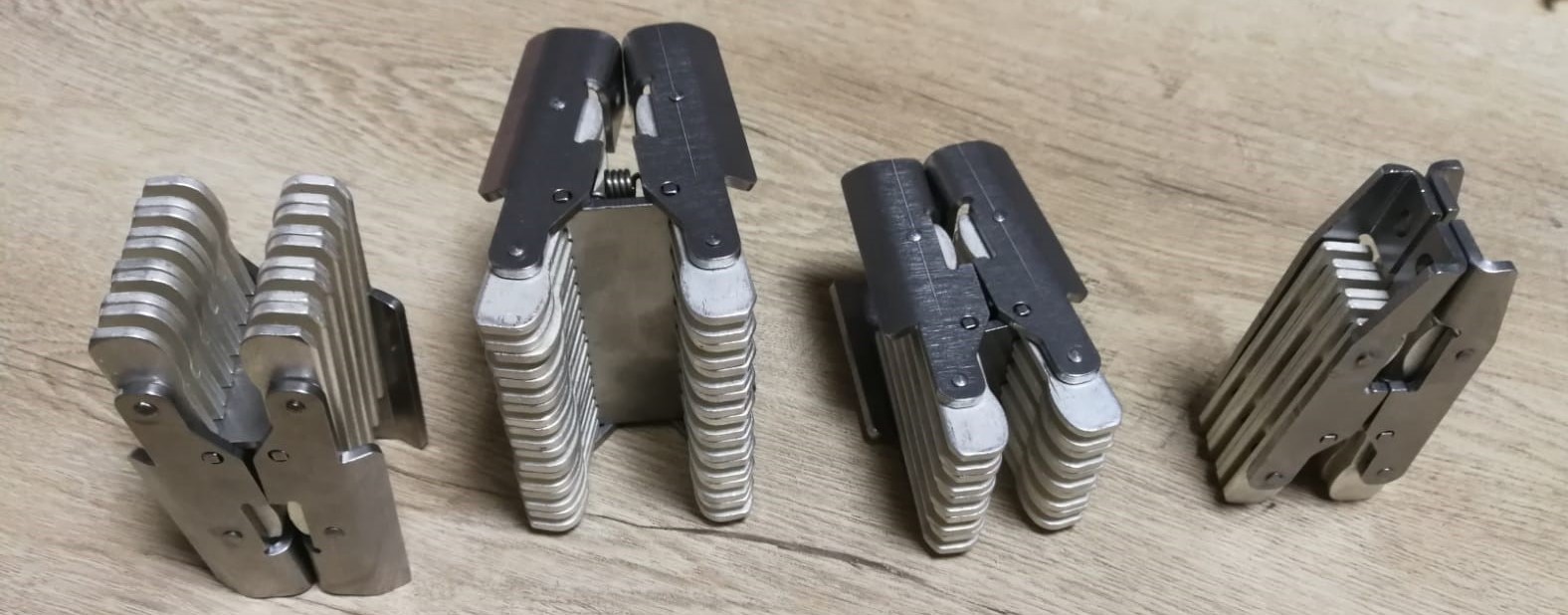

![]() ![]() ![]() Tulip Contact (all Type/all Current)
![]() ![]() Metal Clad-Chassis Truck
Production according to customer design with motor or without motor

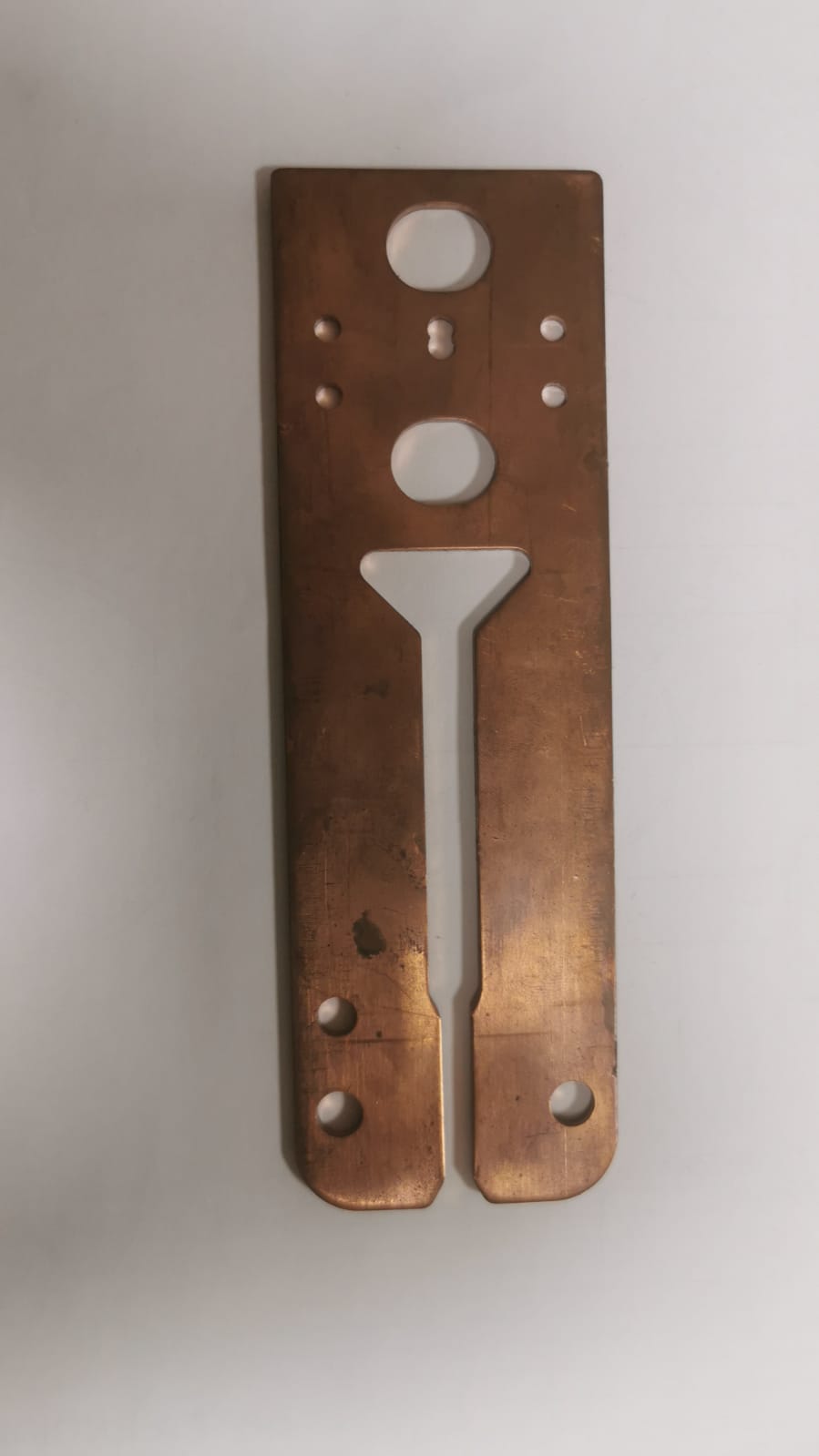

![]() Earthing Contact
3 different sizes

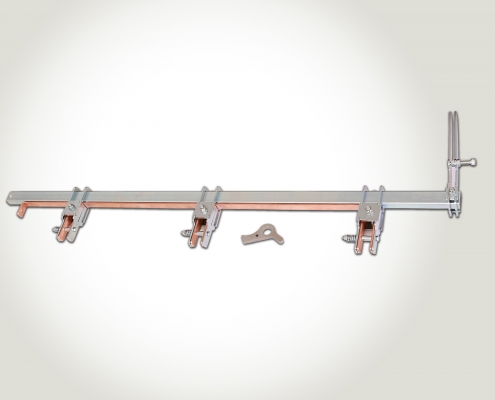

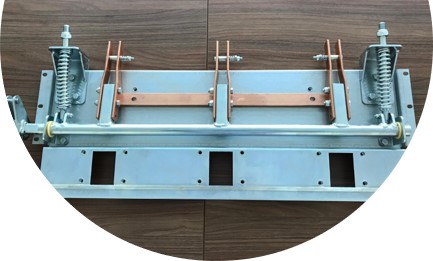

![]() Earthing Knife
Function
– the earthing knife is the moving part of the earthing switch in a medium voltage cubicle – the earthing knife allows to short circuit the 3 phases – a switched on earthing switch connects freed parts with the earth, to allow for secure working in the cubicle ![]() ![]() ![]() ![]() - Selenoid Coil (24-48-110-220 VDC)
What is Solenoid Coil?
It is the structure created by using a coil to create a magnetic field or to use the magnetic field. In a simpler definition, it can be defined as an artificial magnet. You move a magnetized metal using the poles of this magnet. In short, it is obtaining mechanical energy with electrical energy. It´s kind of like an electric piston.
![]() ![]() ![]() On Off Coils
For Breakers in various values
![]() ![]() ![]() Springs for switchgear Usage
Switchgear Fuse holder fuse triger for various switchgear brands

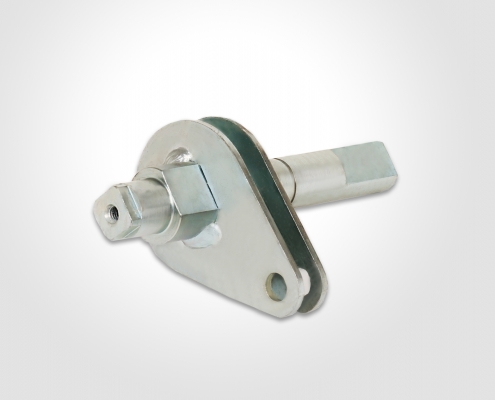

Operating arm
Magnetic Area Fixer
Shunt opening and closing coil
|
